The project scope included the following:

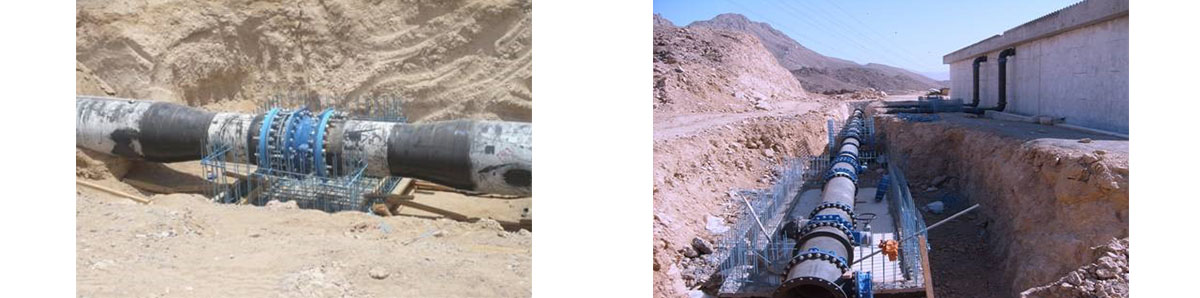

- Transmission Pipeline of 350 km ranging from DN 100 to ND 900 out of which 115 km is Carbon Steel (CS) and 253 of Ductile Iron (DI)
- Chambers - 380 Air Valve Chambers, 350 Washout Chambers & 53 Line Valve Chambers
- 30 compounds, some with Pumping Station and some with Tanker Filling Station only.
- 9 Pumping Stations with different flow rates and heads (flow rates ranging from 2500 m3/hr to 4000 m3/hr) and its switchgear and MCC’s for control system with Chlorination Building and Guard House.
- 13 Tanker Filling Stations with 2 bays for small tanker and 1 bay for big tanker with Guard House
- 15 Nos. of Ground Reservoirs ranging from 800 m3 to 5000 m3 of water capacity.
- 7 Nos. of elevated water tower of 30 m height, ranging from 80 m3 to 900 m3 with its pumping stations
- 315 km of Fiber Optic Cable for SCADA with various components of mini and master RTU’s and main control station at Sur Pumping Station.
- 100 km of Overhead Electrical Transmission Line 33 kV & 11 kV with its transmission towers etc.
Services provided
- Construction supervision of Water Supply Schemes to Ash Sharqyiah Region,
- Preliminary Design, Final Design and Tender Documents preparation for Additional Tanker Filling Station in Ash Sharqiyah Region,
- Preliminary Design, Detail Design and Tender preparation for Water Supply to Wadi Bani Khalid,
- Construction supervision of Additional Tanker Filling Stations in Ash Sharqiyah Region and Water supply to Wadi Bani Khalid,
- Preliminary Design, Final Design and Tender Documents preparation for Distribution Network in Wadi Bani Khalid.
Client
Public Authority for Electricity and Water (PAEW)
