Dubai Electricity and Water Authority (DEWA) intend to construct a new 400/132kV Substation DBXJANUB in Jebel Ali area. DEWA issued Tender RFX No. 2131700053 for:
Construction, Supply, Installation, Testing & Commissioning of Canal Gardens (CANLGRDN), Dubai Janoub (DXBJANUB) 400/132kV substations and associated modification works.
Technical and Commercial evaluations of the submitted bids were done by Energoprojekt ENTEL.

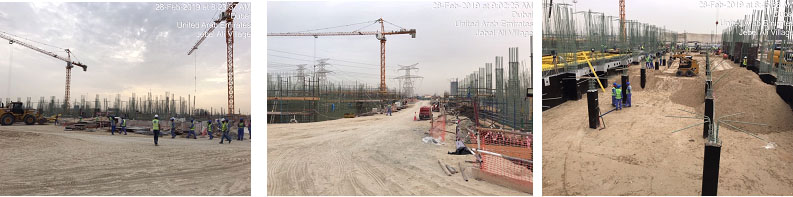

Project CANLGRDN Started on 25-02-2018, completion is planned on 24-02-2020 (24 Months)
Project DXBJANUB Started on 25-02-2018, completion is planned on 24-03-2020 (25 Months).
.
Services provided
- Preparation of conceptual design report
- Preparation of Tender documents/drawings.
- Conducting Environmental Impacts Assessment Study
- Bid Evaluation and tender clarifications.
- Recommendation of the preferred Bidder to the client
- Design review of the documents/drawings prepared by the Contractors design Vendor approvals and review of vendor drawings.
- Supervisory services for the construction works of all disciplines, testing and commissioning of equipment, auditing of EPC contractor’s claims etc.
- Variation Order approvals and Advising DEWEA on all contractual matters.
- Preparation of Project closure reports.
Technical data
- New indoor 400kV GIS is to be supplied, installed, tested and commissioned at the Canal Gardens (CANLGRDN) and Dubai Janoub (DXBJANUB) 400/132kV Substation sites. This shall provide 12 Nos. circuit-breaker bays in a double Bus bar configuration, arranged as follows:
- Four (4) Transformer (ICT) bays each rated at 1250 A
- Two (2) Bus Coupler bays each rated at 4000 A
- Two (2)Bus Section bays each rated at 4000 A
- New indoor 132kV GIS is to be supplied, installed, tested and commissioned at the Canal Gardens (CANLGRDN and the Dubai Janoub (DXBJANUB) 400/132kV Substation sites. This shall provide 30 Nos. circuit-breaker bays in a double bus bar configuration, arranged as follows:
- Four (4) Transformer (ICT) bays each rated at 2500 A
- Two (2) Bus Coupler bays each rated at 3000 A
- Two (2) Bus Section bays each rated at 3000 A
- Eighteen (18) Cable Feeder bays each rated at 1500 A
- Four (4) Bus Reactor bays each rated at 1500A
- Four (4) ICT 400/132kV, 500MVA transformers shall be supplied and installed to interconnect the 400 kV and 132 kV Switchgears
- Four (4) 132kV 40MVAr Bus connected Shunt Reactors shall be supplied and installed to reduce voltage transients.
Client
Dubai Electricity and Water Authority (DEWA)
