Design and Consultancy services for Niger Delta, Nigeria

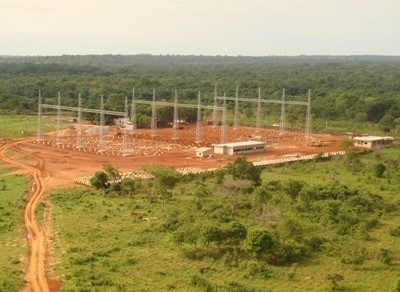

The project addresses construction and erection of Switchyard 330 kV Ugwuaji, ENUGU and
330/132/33kV Substation ERUKAN.

ENTEL scope of work included:

  • Detailed electrical design of the three S/S, including 330kV, 132 kV and 33 kV switchyards, 2x300MVA,132/35kV power transformers, S/S auxiliary consumption, lightning protection, outdoor lighting, earthing and building services.
  • Detail civil design of the three S/S including HV apparatus steel structure, S/S building, staff quarter building, firefighting building, guard house, diesel building, internal roads, boundary walls switchgear (Gantry foundations, equipment foundations lighting foundation, transformers foundation as well as underground utilities).

Services provided

  • Basic Design
  • Detailed Design

Technical data

  • Three 330/132/33kV substations
  • Switchyard 330 kV



Energo Nigeria LTD
