Consultancy Services for New 200/33kv Grid Station and all Related 220kv Cable Works for Al Towayya and Ain Al Faydha - Al Ain, Abu Dhabi

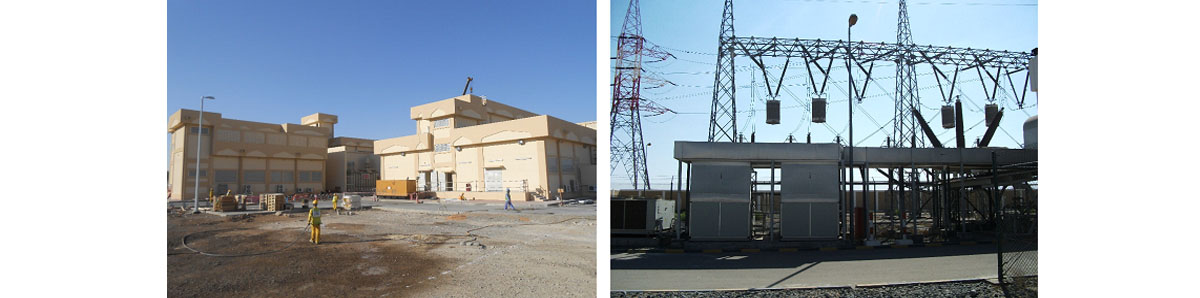

This project consist of two new 220/33kV substation and related 220kV cable works in Al Ain region as follows;

  • Lot 1A: New 220/33 Kv Grid Station In Al Towayya
  • Lot 1B: New 220/33 Kv Grid Station In Ain Al Faydha
  • Lot 2: Cables Works
    • Supply And Installation Of New 220kv Cable Between Zakher And Al Dahma Grid Stations In Al Ain (9.3 km)
    • 220 kV cable and OHL works at Ain Al Faydha (4 x 1 km Approx.)
    • 220 kV cable works at Al Towayya (870 m)

Under consultancy services EPEs scope is to prepare Preliminary/concept design, geotechnical and topographic survey works (sub-consultant), tendering, EPC contract Award, Design review and site supervision during construction and warranty period. The overall project duration is estimated to be 54 months.

Services provided

  • Project Management
  • Conceptual solution
  • Basic design
  • Tendering
  • Design review
  • Site Supervision
  • Contract Administration

Technical data

  • Two 220/33kV Substations
  • 220 kV Cable
  • Remote End Modification Works
  • Civil Works
  • MEP Works



Client

Abu Dhabi Transmission and Dispatch Company (TRANSCO)
