Design and Supervision Works for Water Supply Scheme to Adam,
Al Dakhiliyah Region, Oman

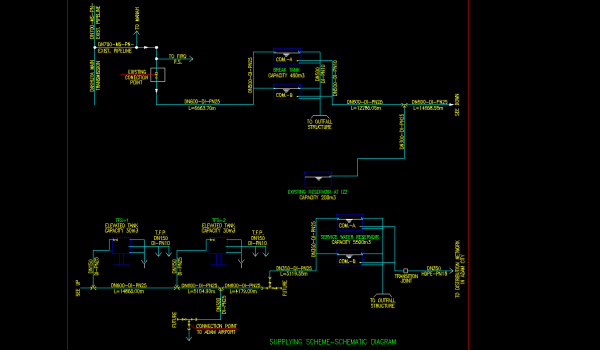

The project scope includes the following:

• Water Transmission Pipeline, DI pipes DN 600 mm, length app. 65 km
• Connection pipeline to Adam Airport, made of DI pipes DN 300 mm, length app. 12 km
• Distribution Network, made of HDPE pipes, DN 350, DN 200 & DN 150, total length app. 45 km
• Two concrete water reservoirs capacity of 480 m3 and 5,500 m3
• Two Tanker Filling Stations.

Services provided

• Preliminary Design
• Final Design
• Tender Documents preparation.

Technical Data:

• Water Transmission Pipeline: 65 km
• Connection Pipeline: 12 km
• Distribution Network: 45 km

Client

Public Authority for Electricity and Water (PAEW)
