The project addresses provision of design and consultancy services in relation to the sewage treatment works in Lusail Area Development, including:
- MBR Sewage Treatment Plant, capacity 60,000 m3/day,

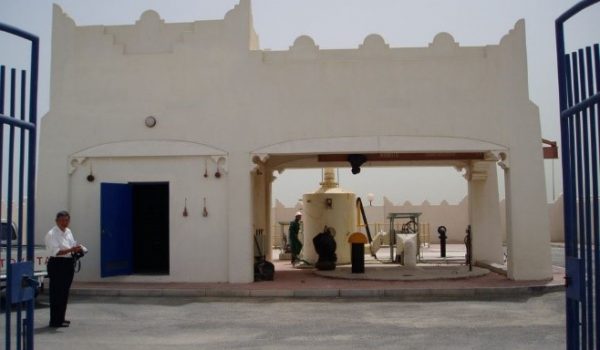

- Two sewage pump stations, capacity from 450 up to 1950 l/s,
- One treated effluent pump station capacity 5,000 m3/h

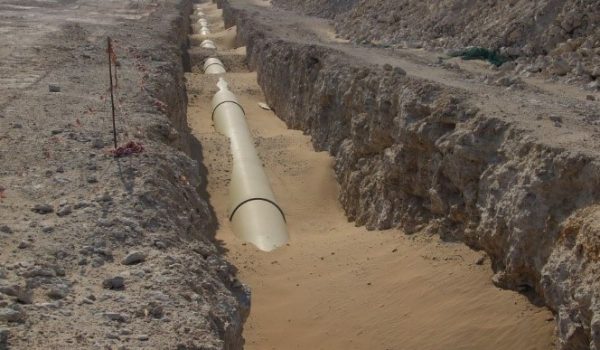

- 4600 m gravity sewer ranging in size from 800mm diameter to1500mm diameter,

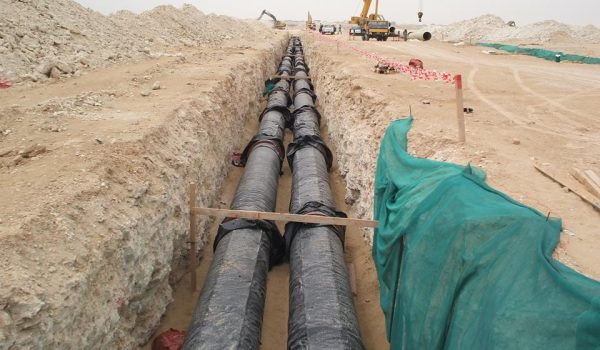

- 5800 m of raising main range size from 400mm to 800mm diameter,
- 10 000 m of TSE mains range size from 700mm diameter to 1000mm diameter,
- 12,100m treated effluent distribution network ranging in size from 200mm diameter to 400mm diameter and SCADA system
Services provided
- Preliminary Hydraulic Calculation
- Preliminary Pipeline Route Proposal
- Preliminary Bill of Quantities
- Material Size Check Report
- Preliminary Design Concept Report
- Route & Invert Level Drawings
- Standard Detail Drawings for Chambers and Manholes
- Final Hydraulic Calculation
- Final Bill of Quantities
- Surge Analysis Review
- Design for Fiber Optic Cable
- Following complete activities related to project execution.
Technical data
- MBR Sewage Treatment Plant, capacity 60,000 m3/day
- Two sewage pump stations, capacity from 450 up to 1950 l/s
- One treated effluent pump station capacity 5,000 m3/h
- 4600 m gravity sewer ranging in size from 800mm diameter to1500mm diameter
- 5800 m of raising main range size from 400mm to 800mm diameter
- 10 000 m of TSE mains range size from 700mm diameter to 1000mm diameter
- 12,100m treated effluent distribution network ranging in size from 200mm diameter to 400mm diameter and SCADA system.
Client
Marubeni Corporation, Japan
