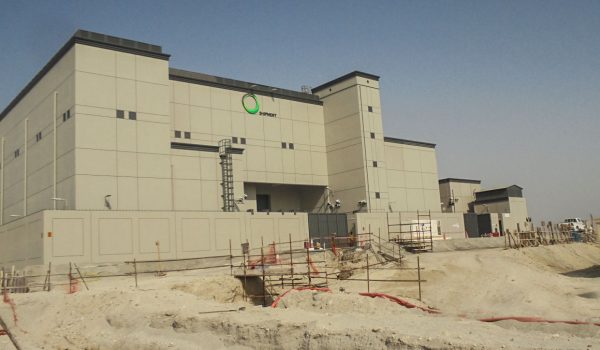

The works related to 132/11kV Substations (MPS) represent a part of DPW’s expansion of Shipping Terminals. The scope of works includes conceptual design, tendering, design review, site supervision and project management of turnkey Design and Built works of 132/11kV Shipment substations as per the requirement of Dubai Electricity & Water Authority (DEWA) & DP World. Substation is located at Newl terminal T4.
The Scope of Consultancy Services covers conceptual design, tendering, estimate, design verification, supervision, witnessing FAT/type tests, Project management and warranty services etc.
Services provided
- Conceptual Design
- Tender documents preparation and verification;
- Cost Estimation
- Clarifications to queries raised by tenderers (EPC contractors) during tendering stage;
- Technical evaluation of received bids and preparation of Technical evaluation report;
- Commercial Evaluation of received bids and preparation of commercial evaluation report and final recommendations;
- Tender negotiations and assistance in contract award;
- Preparation of respective contract documents ;
- Design revise, including documents, drawings, material, method statements etc.
- Project Management (including but not limited to overall project management, schedule controlling, monitoring, interface management and controlling, etc).
- Site Supervision of site construction activities, testing and witnessing the tests by contractor on all equipment during and after the construction;
- FATs in the manufacturers’ facilities;
- Supervision of the commissioning and subsequent warranty period services.
- Handing over to End User.
Technical data
- 132kV GIS – 10 bays
- 11kV Switchgear – 36 outgoing feeders (1200A rating) Power Transformer & Earthing Transformers – 3 Sets
- Shunt reactor
- LVAC, HVAC, MEP, FPS & SCADA systems
Client
DP World
End User
Dubai Electricity & Water Authority (DEWA)
