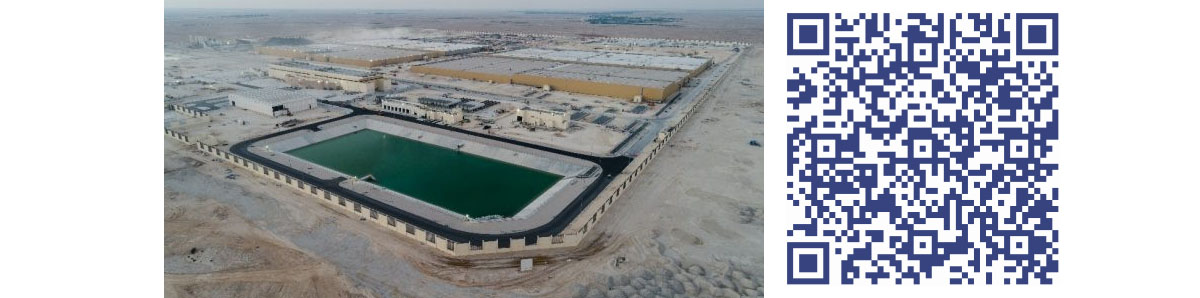

The project entails construction of five potable water mega reservoirs sites and interconnecting network of large diameter water pipelines. Each reservoirs site will ultimately comprise up to nine reservoirs, each of which will be the largest of their type in the world.
Mega reservoirs and pumping stations will be constructed at five strategic locations along the Qatar National Utility Corridor. First phase of the project, which is currently under implementation, will deliver storage capacity of about 2,300 million gallons of water in 24 huge concrete reservoirs and some 480km of buried ductile iron pipelines with diameter up to 1.6m.
The project comprises the following principle new elements which will integrate with the existing supply, transmission and storage system:
Total storage volume:
- First Phase: 2,300 MIG (approx. 10 million m3) in 24 concrete reservoirs
- Second Phase: 3,800 MIG (approx. 17 million m3) in 40 concrete reservoirs
Storage per each PRPS:
- 4-5 reservoirs per PRPS in the first phase with ultimately 7-9 reservoirs per PRPS after the second phase
- Reservoirs dimensions and capacity: 300x150x12 m and 86-97 MIG
Pumps capacities:
- Per single pump: 0.4-1.85 m3/s (1500-6650 m3/h)
- Per PRPS: max. 6.5 m3/s (23000 m3/h)
DI pipelines to be constructed in the first phase:
- Corridor Mains: 280 km (DN 1200-1600)
- Transmission Pipelines: 200 km (DN 900-1600)SCADA and corresponding telecommunication system
The project holds the Guinness World Record for the largest drinking water storage tank, awarded to Kahramaa on 25 January 2020.
Services provided
Pre-Construction Stage:
- Overall Project Management and Administration
- Review and verification of all detailed design documents;
- Prepare master plan for the projects covering all stages & packages till the completion & handing over
- Develop a procedure manual for the projects
- Establish and maintain a computerized web based Project Control Systems (PCS)
- Review of Tender documents
- Technical clarifications during bidding stage, Bid evaluation
- Review Contract documents for construction.
Construction Stage:
- Act on behalf of the client in managing the project and ensure successful completion.
- Provide staff for Project Management, Administration and Site Supervision
Post-Construction Stage:
- Technical Advisory and Support during Warranty Period
Technical data
- First Phase: 2,300 MIG (approx. 10 million m3) in 24 concrete reservoirs
- Second Phase: 3,800 MIG (approx. 17 million m3) in 40 concrete reservoirs
- Reservoirs dimensions and capacity: 300x150x12 m and 86-97 MIG
- Per single pump: 0.4-1.85 m3/s (1500-6650 m3/h)
- Per PRPS: max. 6.5 m3/s (23000 m3/h)
- Corridor Mains: 280 km (DN 1200-1600)
- Transmission Pipelines: 200 km (DN 900-1600)
Client
Qatar General Electricity & Water Corporation (KAHRAMAA)
